The HSM 8 TE horizontal baling press is a compact and mobile small baler, known for its performance, efficiency, and flexibility. With this easy-to-operate baler, you need to only insert the strapping tape after loading the waste and switch the machine on. With automatic strapping and bale ejection, the HSM 8 TE efficiently produces compact bales that are ejected directly onto a pallet, facilitating easy transport to storage locations. This baler saves man-hours and simplifies your waste management efforts manifold.

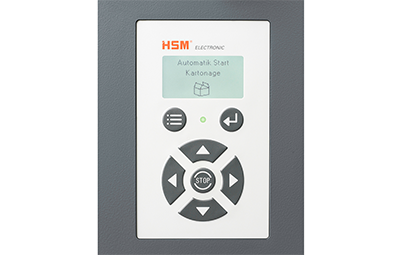

The HSM 8 TE is designed for mobility, equipped with castors for easy movement. It is suitable for compacting cardboard, film, and other materials against the counter plate using a horizontally moving press ram. The baler features a compact design with a low overall height and a large loading aperture, making it ideal for handling bulky materials. The unit includes a graphic-capable display for intuitive, multilingual operational guidance through graphic descriptions. It boasts a manual feeding system with an extremely large loading aperture, ensuring simple and convenient loading. The press also features an automatic bale-ready signal, notifying users when enough material has been compressed to form a bale, ready for strapping. Bale strapping is done manually with continuous polyester tape, making the HSM 8 TE a versatile and efficient solution for various compacting needs.
| Pressing Power | 80 kN |
| Specific Pressing Power | 24.37 N/cm² |
| Driving Power | 4 kW |
| Voltage / Frequency | 3 x 400 V / 50 Hz |
| Cycle Time When Idling | 26 s |
| Bale Dimensions (Length x Width x Height) | 650 mm x 505 mm x 500 mm |
| Machine Dimensions (Length X Width x Height) | 2505 mm x 813 mm x 868 mm |
| Loading Aperture Dimensions (Width x Length) | 645 mm x 730 mm |
| Volume Throughput in Idle | 32.8 m³/h |
| Bale Weight | 70 kg approx. |
| Loading Height | 660 mm |
| Machine Weight | 554 Kg |
| Method of Strapping | Horizontal |
| Number of Strappings | 3 |
Low overall height suitable for bulky material
Compaction against counter plate by horizontal moving press ram
Feeding manual
Manual bale strapping with continuous polyester tape
Intuitive, multilingual operational guidance via graphic description
What is the warranty on the baler machines?All of our products are covered with a 1-year warranty against manufacturing defects.
Are the operations of the baler user-friendly? Yes, HSM balers are safe & designed to be operated with minimal effort. Easy to use and has very high safety standards. We provide operator training at the time of machine installation on customer request.
What materials can be baled using HSM balers? PET bottles, aluminum beverage cans, soft packaging, cardboard, mixed paper, plastic film, etc.
