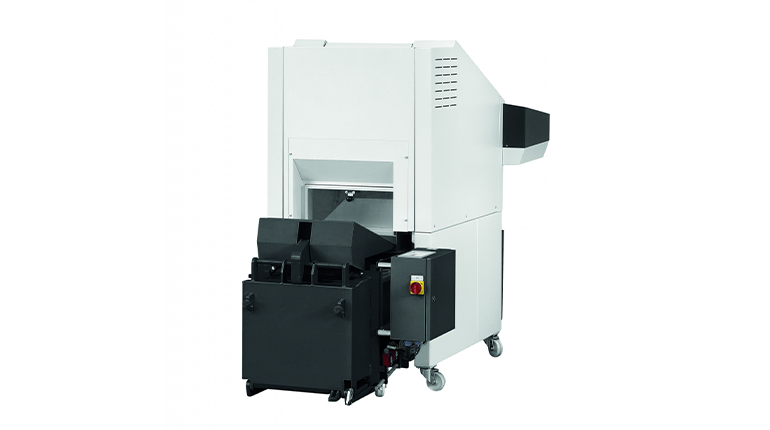

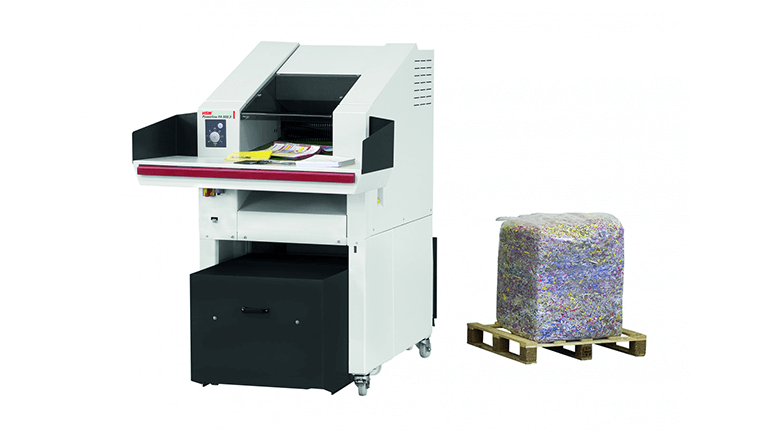

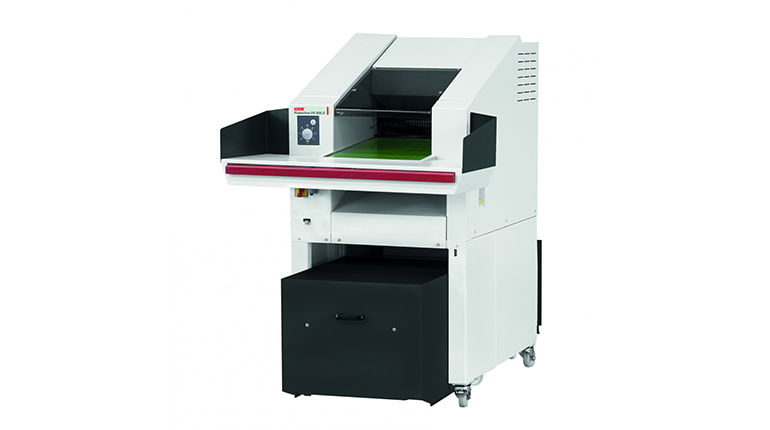

The HSM Powerline SP 5080 is a versatile recycling machinery combination of the HSM Powerline FA 500.3 heavy-duty document shredder and a counter plate baling press. This integrated system ensures data security in archives while compressing shredded material into bales weighing between 40 and 80 kg, for easy recycling. Designed for efficiency and reliability, the Powerline SP 5080 shredder-baler combination offers seamless operation and high-capacity shredding and baling for demanding environments in central offices, archives, large office spaces, etc. Shredding material includes paper, folders (excluding the HSM Powerline SP 5080 - 1.9 x 15 mm & HSM Powerline SP 5080 - 3.9 mm x 40 mm), paper clips, credit/debit/loyalty cards, CD/DVDs, Floppy Disks, USBs, etc. Please note that data media can only be shredded by the machine, not baled.
The HSM Powerline SP 5080 industrial shredder and baler features a non-slip conveyor belt for convenient material feeding, ensuring smooth and efficient operation. The automatic oiler maintains optimal performance by ensuring the shredding machine runs smoothly, providing consistently high cutting capacity and quality. The induction-hardened, solid steel cutting rollers handle staples and paper clips with ease, guaranteeing durability and longevity.
With a powerful motor with chain drive, the SP 5080 supports continuous operation, delivering high cutting capacity for large volumes of material. The shredded material is compressed into compact bales, which are manually tied off with three baler straps of continuous polyester strapping for secure document destruction. The variable bale weight can be adjusted according to specific requirements. The versatile recycling unit is available with different shredded particle dimensions: 1.9 x 15 mm, 6 x 40-53 mm, 3.9 x 40 mm, and 10.5 x 40-76 mm.
Safety is a top priority, and the SP 5080 is equipped with an emergency stop safety bar on the loading table, which halts the device when pressure is applied. The easy-to-use membrane keyboard, graphics-capable text display, and language selection ensure user-friendly operation. Automatic reverse functionality also prevents paper jams. The powerful and energy-efficient dust extractor HSM DE 4-100, available as an accessory, optimizes extraction and reduces dust emissions. The mobile machine is easy to handle and transport due to the castors with parking brakes.
For additional safety, the finished bale is output using a secure two-hand operation. The SP 5080 is designed for simple commissioning with Plug-and-Play capability, allowing the conveyor belt-shredder to be easily combined with a press at any time, providing flexible and efficient shredding and baling solutions.
| Scope of Application | Archives, central offices, etc. |
| Type of Cut | Particle cut |
| Particle Dimensions | 10.5 mm x 40-76mm, 6 mm x 40-53 mm, 3.9 mm x 40 mm, 1.9 mm x 15 mm |
| Security Level (DIN 66399 / ISO / IEC 21964) | E-2 | O-2 | P-3 | T-3 for HSM Powerline SP 5080 - 6 x 40-53 mm, E-4 | F-2 | O-4 | P-5 | T-5 for HSM Powerline SP 5080 - 1.9 x 15 mm, E-3 | F-1 | O-3 | P-4 | T-4 for HSM Powerline SP 5080 - 3.9 mm x 40 mm, E-2 | O-2 | P-2 | T-2 for HSM Powerline SP 5080 - 10.5 x 40-76 mm OR equivalent |
| Cutting Performance in Sheets 80g / m² | 510-550 for HSM Powerline SP 5080 - 10.5 mm x 40-76 mm, 340-380 for HSM Powerline SP 5080 - 6 x 40-53 mm, 180-200 for HSM Powerline SP 5080 - 3.9 mm x 40 mm, 90-100 for HSM Powerline SP 5080 -1.9 x 15 mm |
| Pressing Force | 80 kN |
| Drive Power | 7.5 kW (shredder) & 4 (baling press), 5.5 kW + 4 kW (shredder) & 4 kW (baling press) for HSM Powerline SP 5080 1.9 mm x 15 mm |
| Voltage Frequency | 400 V / 50 Hz (also available in KSA specs 380 V / 60 Hz upon request) |
| Input Width | 500 mm |
| Bale Weight | 40 to 80 Kg |
| Bale Dimensions (Length x Width x Height) | 570 mm x 490 mm x 800 mm |
| Machine Dimensions (Width x Depth x Height) | 1168 mm x 2398 mm x 1795 mm |
| Machine Weight | 1350 kg (1480 kg for HSM Powerline SP 5080 - 1.9 x 15) |

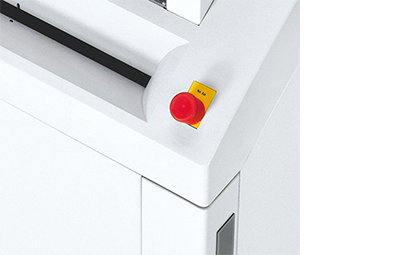

The device is stopped immediately by pressing the emergency off safety bar/switch.

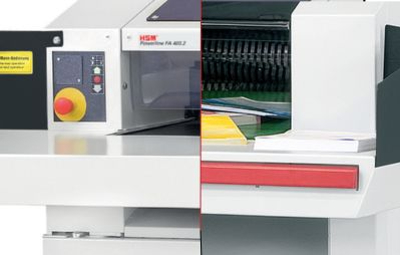

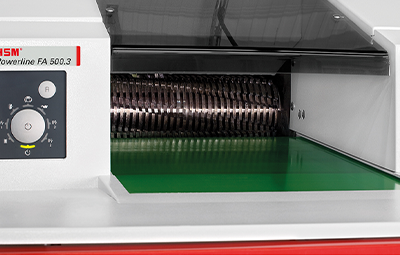

The material feed is convenient and takes place via the conveyor belt.

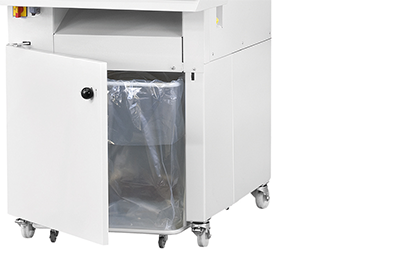

The pull-out trolley with a reusable collection bag makes it easy to empty.

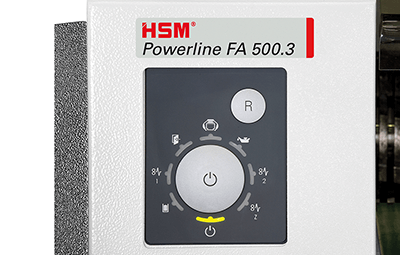

The device can be operated intuitively with the multifunctional element.

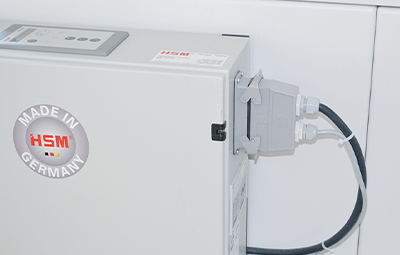

Easy commissioning of the combination thanks to plug-and-play.
Can the HSM Powerline SP 5080 be easily moved?Yes, the HSM Powerline SP 5080 is designed for easy mobility with castors equipped with parking brakes. This feature allows for easy movement.
Does the HSM Powerline SP 5080 require manual or automatic oiling?The HSM Powerline SP 5080 features an automatic oiler.
What types of cutting rollers does the HSM Powerline SP 5080 use, and what are their benefits?The machine utilizes induction-hardened, solid steel cutting rollers. These rollers are highly durable, capable of handling staples and paper clips, and ensure long-lasting performance.
How does the HSM Powerline SP 5080 handle potential paper jams?The HSM Powerline SP 5080 is equipped with automatic reverse functionality, which helps prevent and resolve paper jams by reversing the paper feed if a jam occurs.
What safety features are included with the HSM Powerline SP 5080?Safety features of the HSM Powerline SP 5080 document shredder with baling press include an emergency stop safety bar on the loading table, which halts the device when pressure is applied. Additionally, the finished bale is output using a secure two-hand operation for added safety.
What is the weight range for the bales produced by the HSM Powerline SP 5080?The bales produced by the HSM Powerline SP 5080 range in weight from 40 to 80 kg, with the ability to adjust the bale weight according to specific requirements.
Can the HSM Powerline SP 5080 handle continuous operation?Yes, the HSM Powerline SP 5080 industrial shredder and baler combination is designed to support continuous operation. It features a powerful motor with chain drive that delivers high cutting capacity for large volumes of material.
