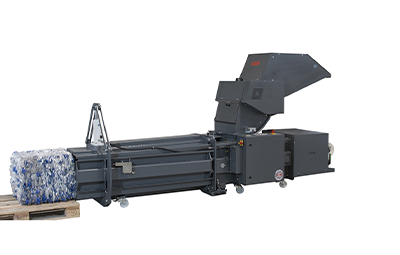

The HSM PET CP 4988 is a highly efficient recycling system designed to reduce the volume of empty PET bottles by up to 90% in a single cycle, producing compact raw material bales. This plastic bottle crusher combines perforation and baling, making it ideal for perforating PET bottles with flatteners and crushers, and subsequently bailing them. This advanced system is one of the best in the POWER Bear range of compacting machines for managing the disposal of PET bottles sustainably and in a space-saving manner. The industrial crusher significantly decreases the time required for disposal and reduces the carbon footprint associated with transportation and recycling.
The HSM PET CP 4988 features a powerful system capable of processing up to 4000 (1-liter) PET bottles per hour. The dosing shaft of the industrial press ensures secure bottle intake, and the drainage system removes all residual fluid before pressing. With a pressing power of 11 tonnes, the machine compresses the crushed bottles into raw material bales weighing up to 100 kg. The crusher rollers are made of specially hardened and ground steel, ensuring durability and resistance to wear. The scraper system prevents blockages by reliably removing compressed bottles from the rollers. The PET bottle compactor offers both manual and automatic filling options and includes automatic photoelectric control of the pressing process. It also features a manual, three-fold strapping system with continuous polyester strap and a display indicating when a bale is ready. The compact design of the recycling machinery requires minimal space, making it an ideal solution for efficient PET bottle recycling.
| Pressing Force | 100 KN |
| Specific Pressing Force | 44 N / cm² |
| Drive Power | 6.2 kW |
| Voltage Frequency | 400 V / 50 Hz |
| Working Width | 490 mm |
| Filling Level | 1510 mm |
| Throughput (1l bottle / h) | 4000 |
| Aperture Dimensions (Width x Length) | 413 mm x 426 mm |
| Application Area | Food & Beverage, Industry & Manufacturing, Retail |
| Bale Dimensions (Width x Height x Length) | 500 mm x 500 mm x 600-1200 mm |
| Bale Weight (up to) | 100 kg |
| Type of Loading | Manually |
| Length x Width x Height | 3826 mm x 990 mm x 1800 mm |
| Weight | 1150 kg |
The high-quality materials and the proven quality "Made in Germany" guarantee safety and durability.
Reduces 90% of the original volume into compact raw material bales, including deposit devaluation.
Offers both manual and automatic filling options.
Throughput up to 4000 PET bottles (1 liter) per hour
Features automatic photoelectric control for the pressing process.

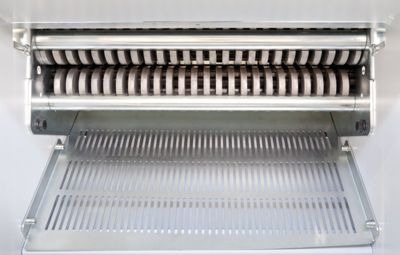

Equipped with crusher rollers made of specially hardened and ground steel.
A dosing shaft with integrated blades ensures consistent material feeding.
Includes a scraper system to remove compressed material.
What types of bottles can the HSM PET CP 4988 process?The HSM PET CP 4988 is designed to process empty PET bottles. It can efficiently handle these bottles, making it an ideal choice for managing PET waste in various recycling and waste management applications.
How many PET bottles can the HSM PET CP 4988 process per hour?The HSM PET CP 4988 can process up to 4000 PET bottles (1 liter each) per hour. This high throughput capacity allows for efficient and large-scale PET bottle recycling operations.
What is the maximum weight of the bales produced by the HSM PET CP 4988?The HSM PET CP 4988 produces bales with a maximum weight of up to 100 kg. This compact and heavy-duty bale size is ideal for efficient handling and transportation of processed material.
Does the HSM PET CP 4988 remove residual liquids from bottles before compacting?Yes, the HSM PET CP 4988 PET bottle baler includes a drainage system that removes all residual liquids from the PET bottles before they are compacted. This feature ensures that the bales are clean and free from excess liquid, improving the overall quality of the processed material.
What kind of maintenance does the HSM PET CP 4988 require?The HSM PET CP 4988 is designed for minimal maintenance. Regular checks on the dosing shaft, scraper system, and crusher rollers are recommended to ensure optimal performance. The machine’s robust construction and quality materials help reduce the frequency of maintenance needs.
Can the HSM PET CP 4988 be operated manually, or is it fully automated?The HSM PET CP 4988 offers both manual and automatic operation modes. This flexibility allows users to choose the mode that best suits their operational requirements and preferences. The machine also features automatic photoelectric control to streamline the pressing process.
