The HSM PET Crusher SA 1049 is a recycling machinery designed to efficiently reduce the space required for returned containers to approximately 25 to 30 percent of their original volume. This reduction in volume not only saves space but also significantly decreases the time required for disposal. The reduced volume means more bottles can be transported for recycling which means less carbon footprint, which makes the crusher a sustainable solution for recycling. The special roller system of the bottle and can crusher perforates and crushes containers, ensuring that the reduction in volume is permanent and deposit plastic bottles and cans are reliably invalidated. It is available with two voltage specifications: 400 V / 50 Hz and 230 V / 50 Hz.
The HSM Crusher 1049 SA is an efficient waste recyclable management equipment for reducing the volume of PET bottles and cans to one-third or one-fourth of their original size. The crusher rollers are made of specially hardened and ground steel, making them completely resistant to wear and exceptionally strong for a long service life. The integrated scraper system removes the compressed plastic bottles and cans from the crusher rollers, preventing blockages and downtime.
A dosing shaft with integrated blades ensures that plastic bottles and cans are fed reliably into the crusher. The high-volume bottle crusher is manually controlled via an easy-to-use keypad with forward, reverse, and stop functions, while an LED display provides real-time information on the machine's status, including ready, overload, door open, and container full indicators. The PET Crusher 1049 SA automatically switches off after two minutes of inactivity to save energy and can be operated continuously if needed.
The cutting head of the crusher can also be used in combination with a deposit return machine, making it a versatile addition to any recycling setup. This durable and efficient industrial recycling crusher ensures that the volume reduction of PET bottles and cans is handled quickly and effectively, simplifying the recycling process.
| Drive Power | 1.5 kW (230 V / 50 Hz) or 3kW (for 400 V / 50 Hz) |
| Voltage Frequency | 230 V / 50 Hz or 400 V / 50 Hz (also available in KSA specs 380 V / 60 Hz upon request) |
| Working Width | 490 mm |
| Loading Height | 1206 mm |
| Container/Collection Volume | 290 L |
| Pressed Material | PET bottles, beverage and aluminum cans, soft packaging, PET beverages and aluminum cans, soft packaging, etc. |
| Throughput (1l bottle / h) | 2,000 |
| Type of Loading | Manually |
| Dimensions (Width x Depth x Height) | 793 mm x 1751 mm x 2037 mm |
| Weight | 230 Kg |
| Application Area | Retail Industry, Food & Beverage Industry, Recycling & Waste Management, Manufacturing Industry |
The high-quality materials and the proven quality "Made in Germany" guarantee safety and durability.
Effective system for compressing PET bottles and cans to approx. 1/3 to 1/4 of the original volume.

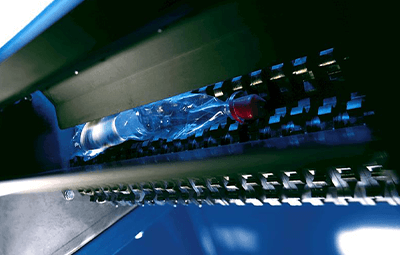

Crusher rollers made of specially hardened and ground steel, insensitive and robust - for a long service life.
Throughput up to 2400 PET bottles (1 liter) per hour.

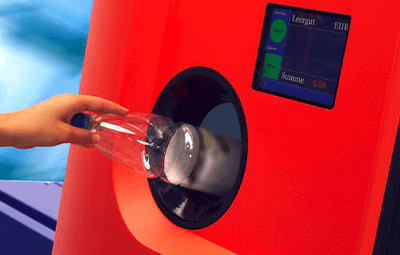

The cutting unit can also be used in combination with deposit return machines.
What types of containers can the HSM Crusher 1049 SA handle?The HSM Crusher 1049 SA is capable of handling PET bottles, beverage and aluminum cans, as well as soft packaging materials.
How much can the HSM Crusher 1049 SA reduce the volume of PET bottles and cans?The HSM Crusher 1049 SA PET bottle crusher can reduce the volume of PET bottles and cans to approximately 25 to 30 percent of their original size.
What are the voltage specifications for the HSM Crusher 1049 SA?The POWER Bear HSM Crusher 1049 SA is available in two voltage specifications: 230 V / 50 Hz and 400 V / 50 Hz. Additionally, it can be provided with KSA-specific specs of 380 V / 60 Hz upon request.
Does the HSM Crusher 1049 SA come with any safety features?Yes, the HSM Crusher 1049 SA features an automatic switch-off function that activates after two minutes of inactivity, preventing unnecessary energy consumption and ensuring safe operation.
How does the integrated scraper system benefit the operation of the HSM Crusher 1049 SA?The integrated scraper system removes compressed plastic bottles and cans from the crusher rollers, preventing blockages and minimizing downtime.
What are the environmental benefits of using the HSM Crusher 1049 SA?The HSM 1049 SA crusher reduces the volume of waste containers, which decreases the number of transport trips required for recycling. This reduction in transport leads to lower carbon emissions, making the crusher an eco-friendly solution for waste management.
The POWER Bear team will advice you about the most practical delivery option to your address.
Can deliver 4 unit
Can deliver up to 6 units
Contact us for project-specific requirements
